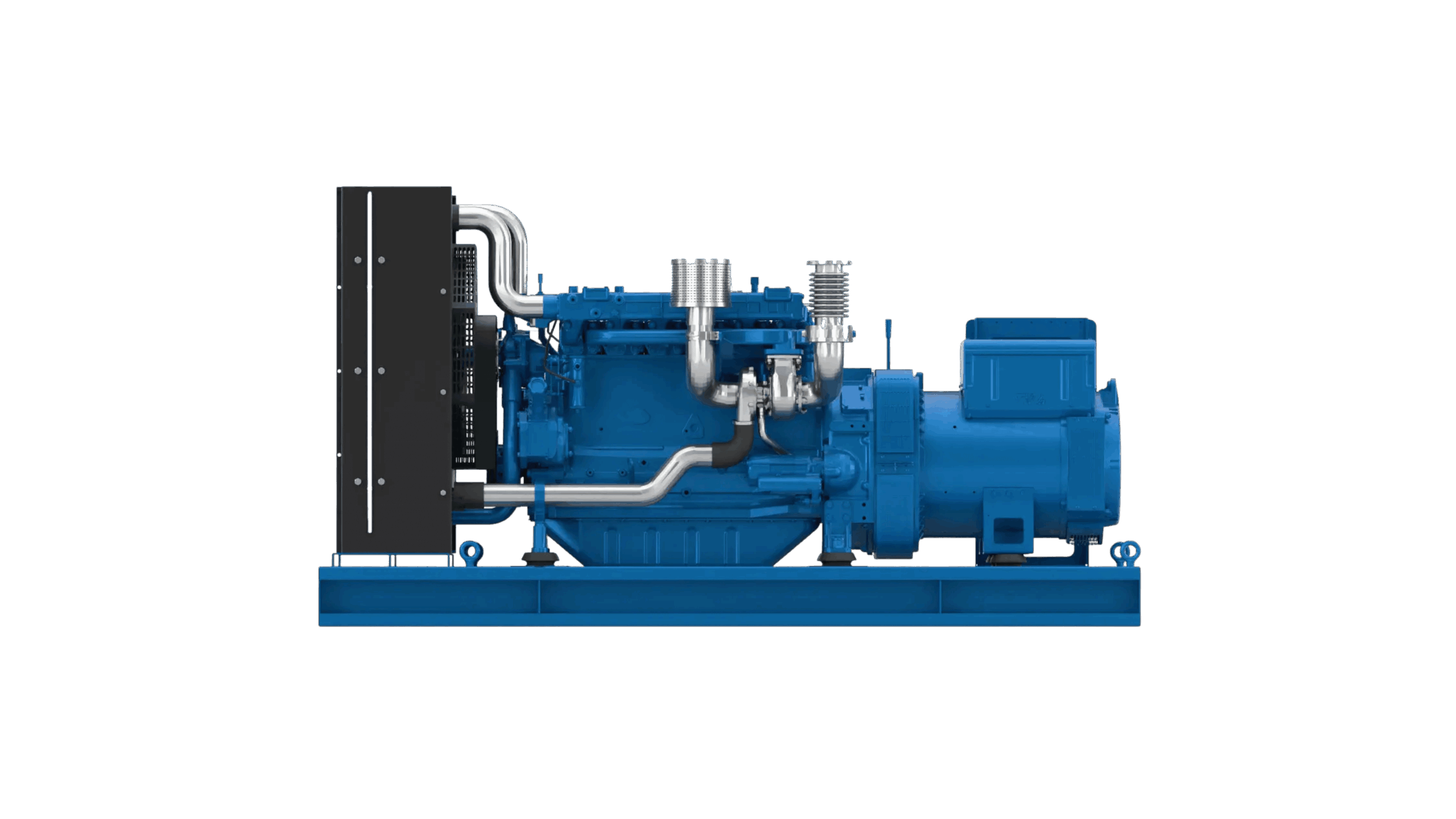

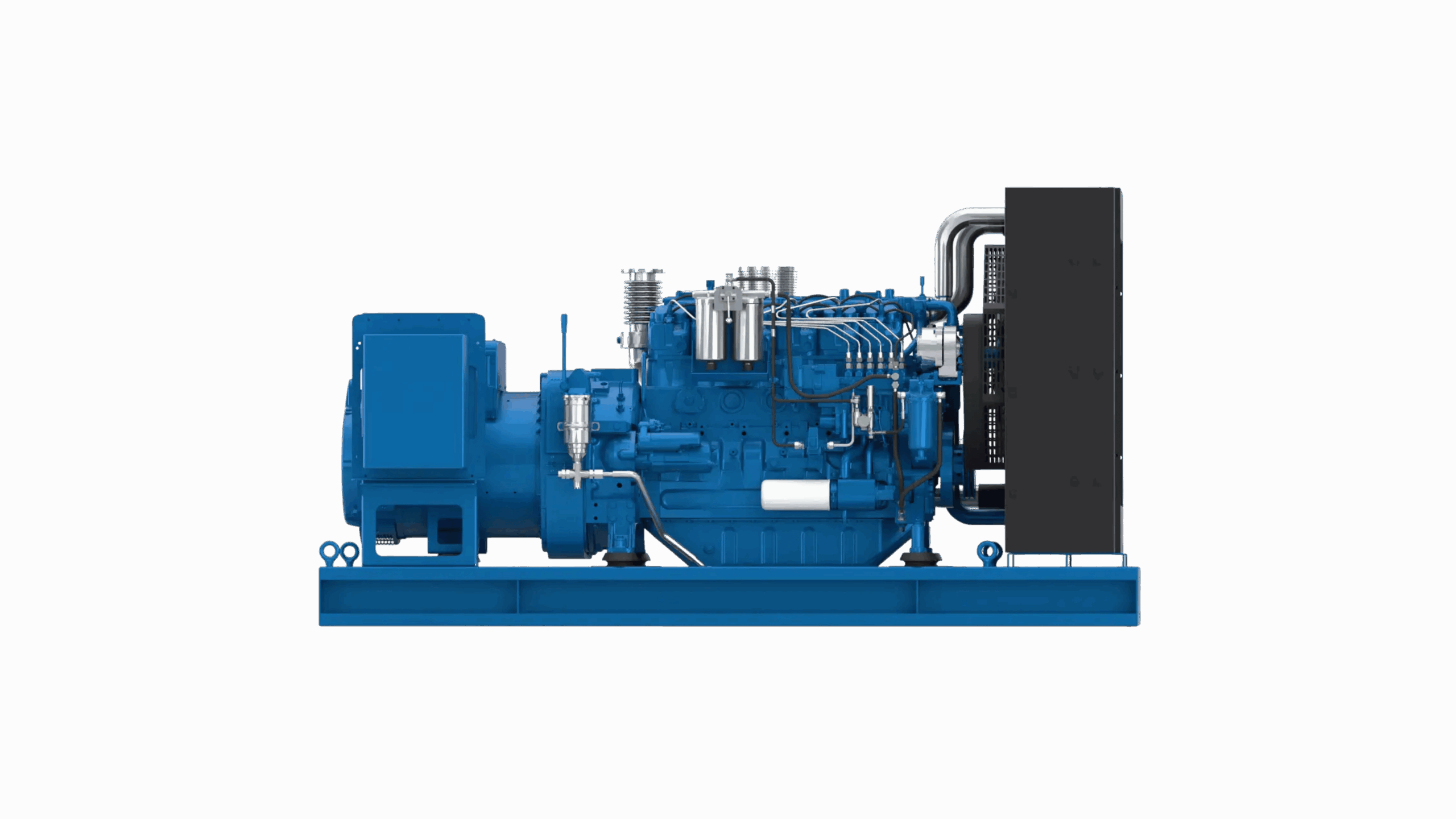

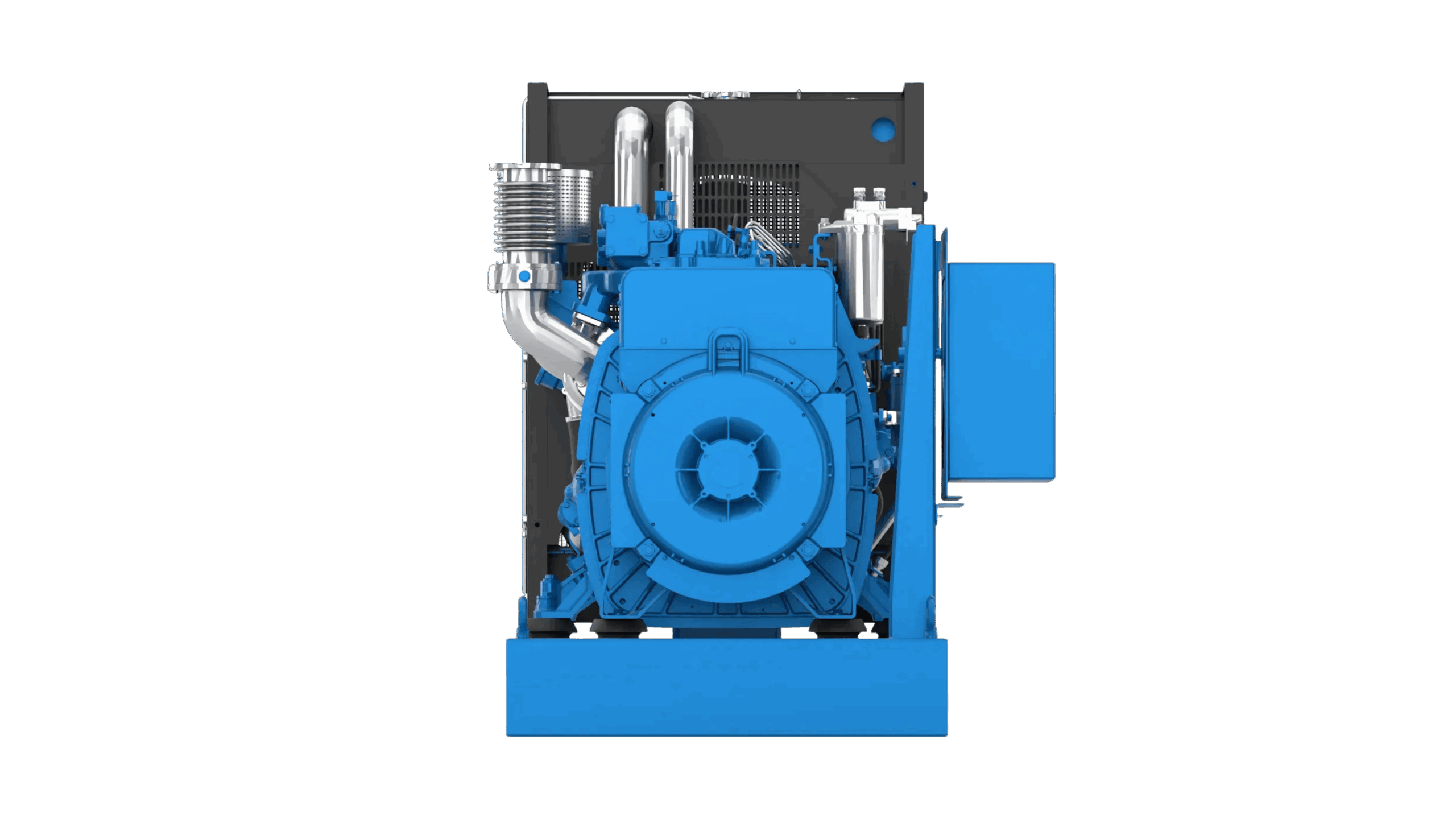

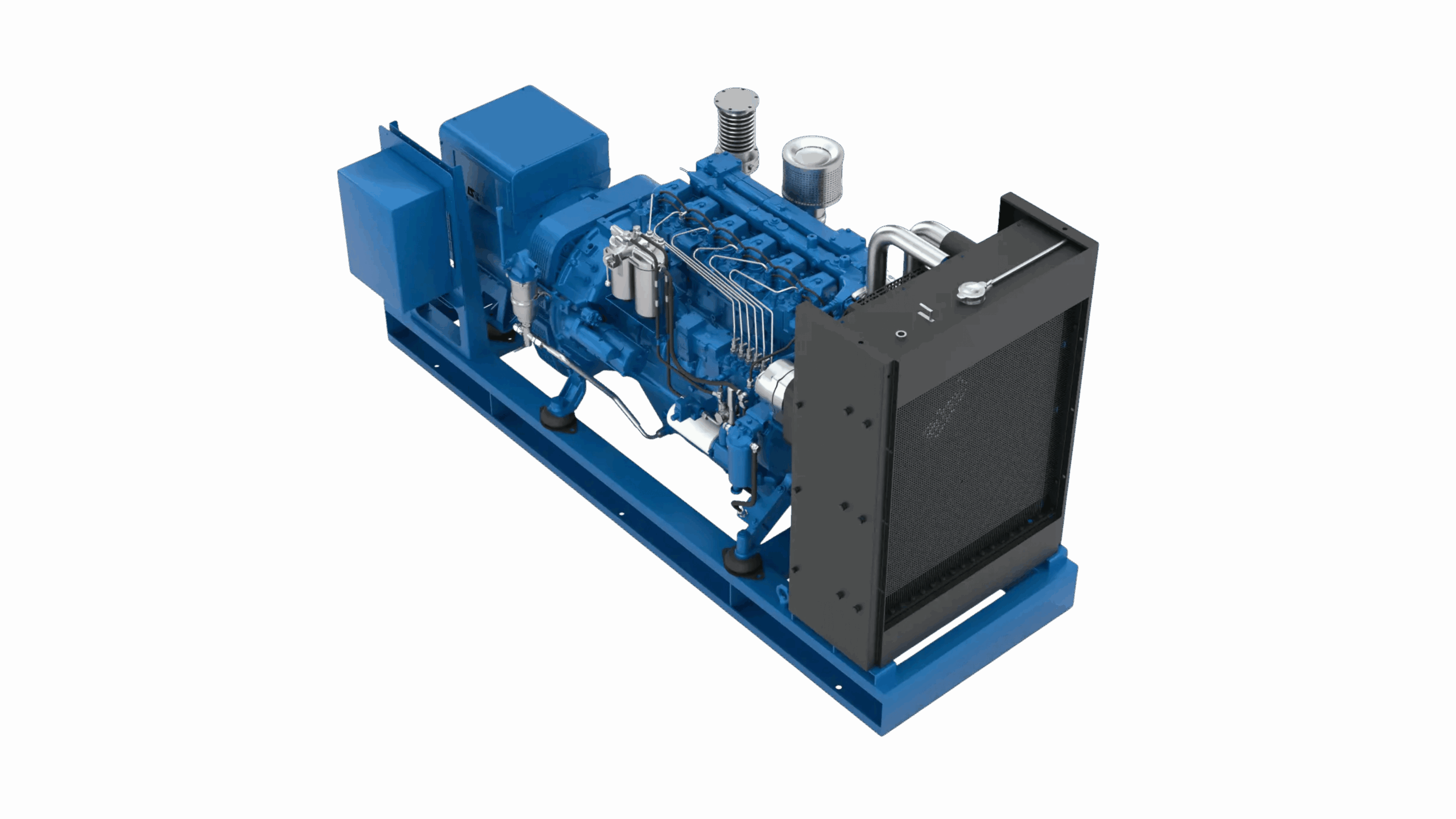

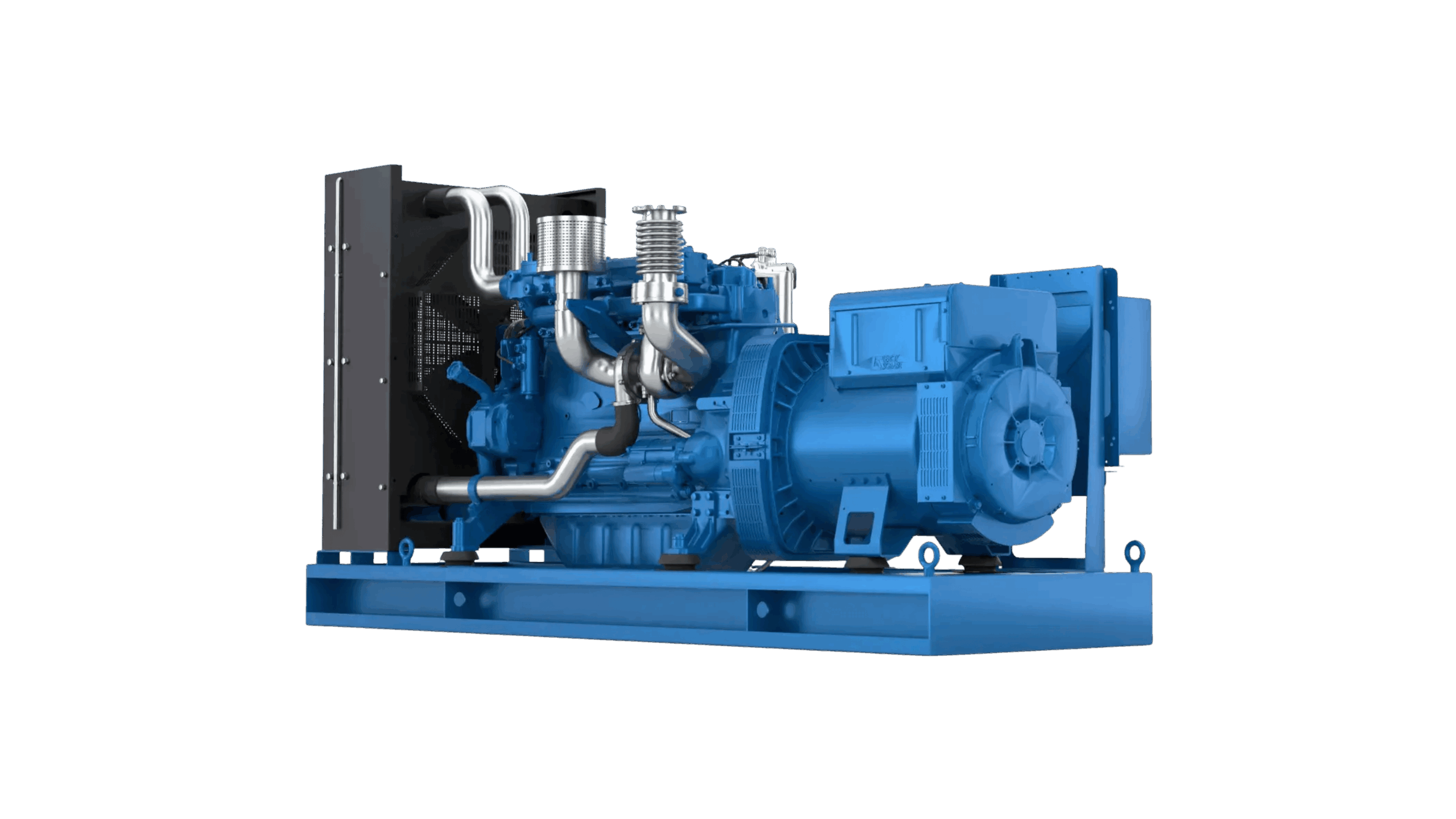

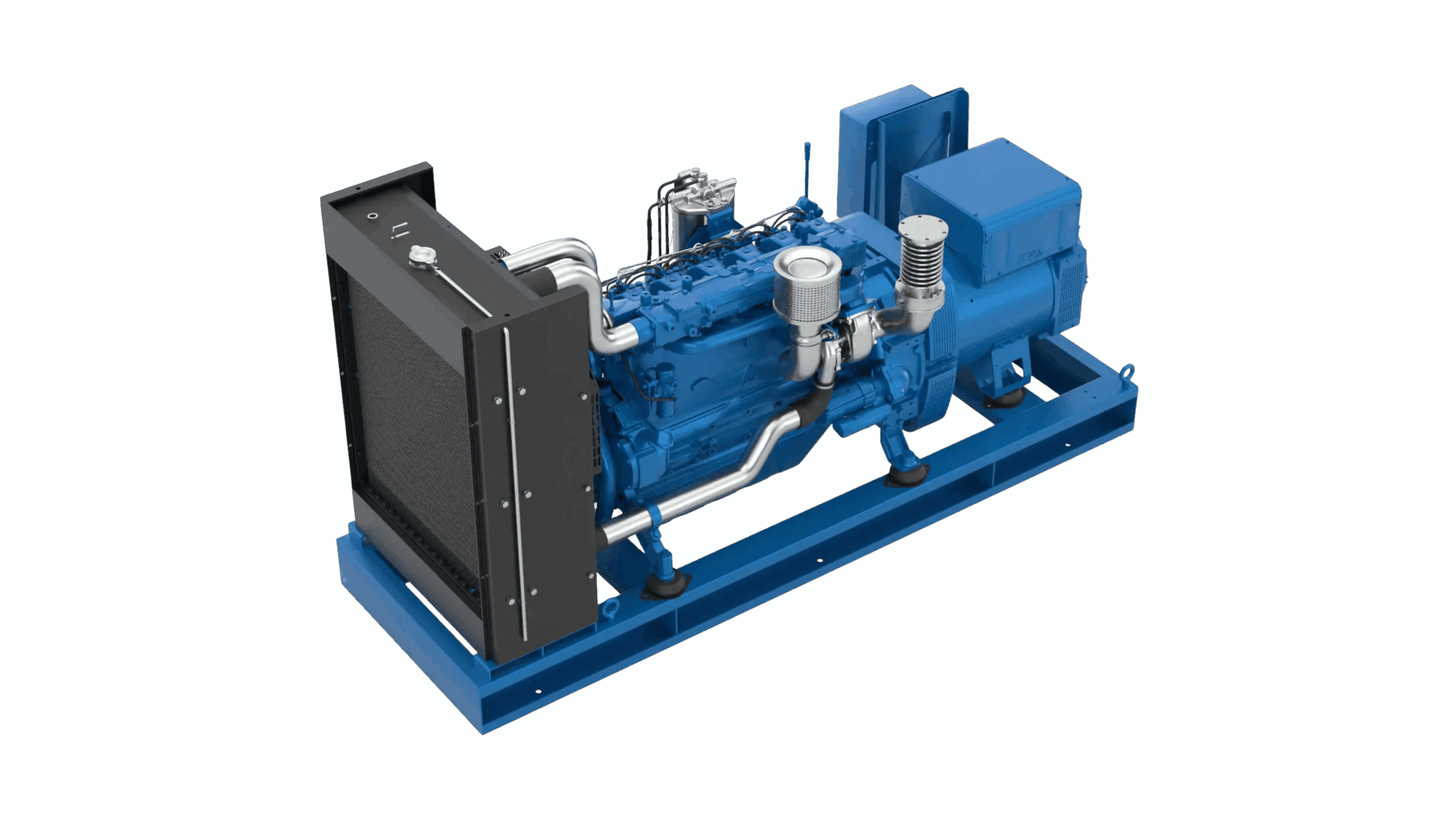

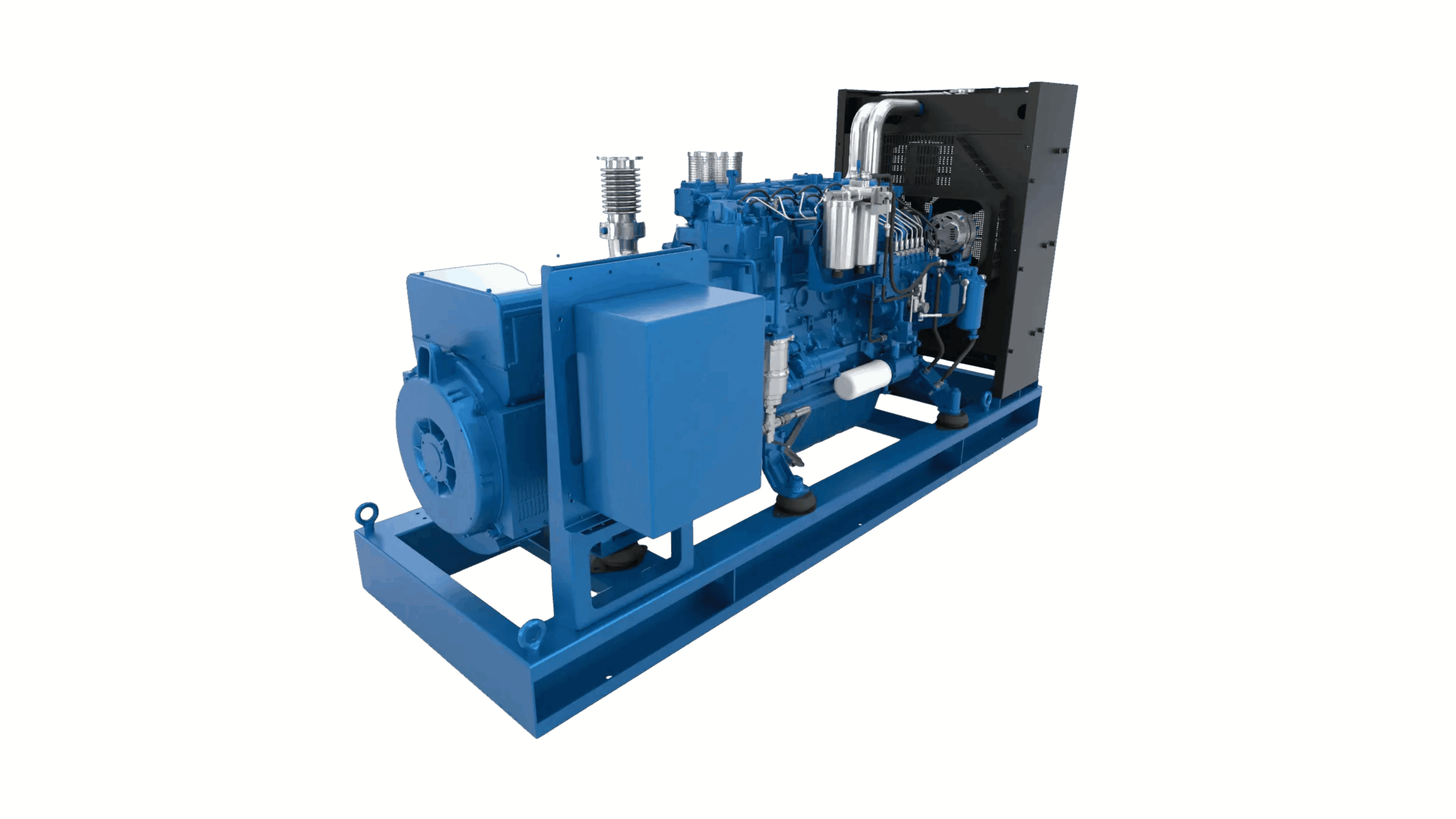

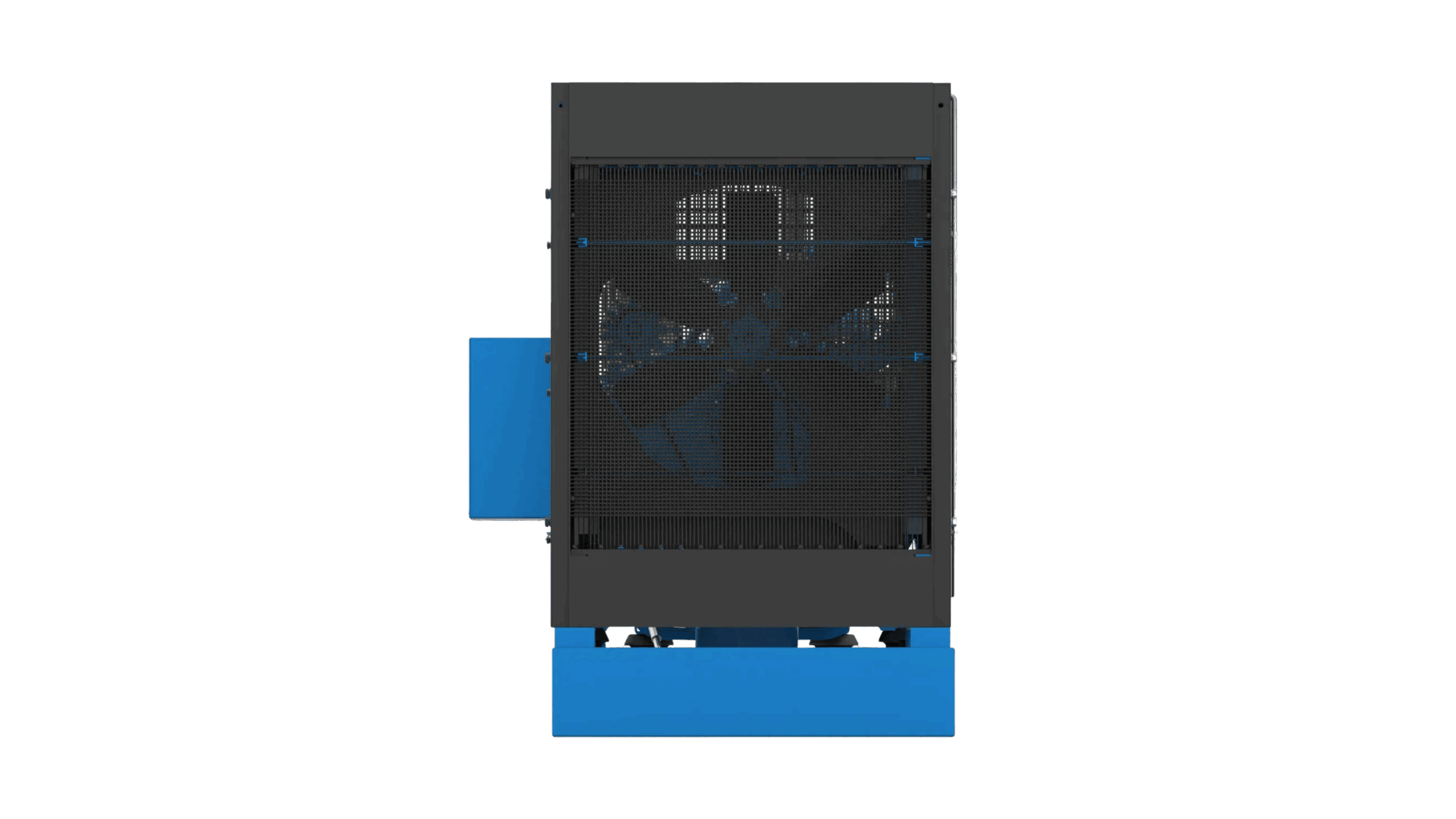

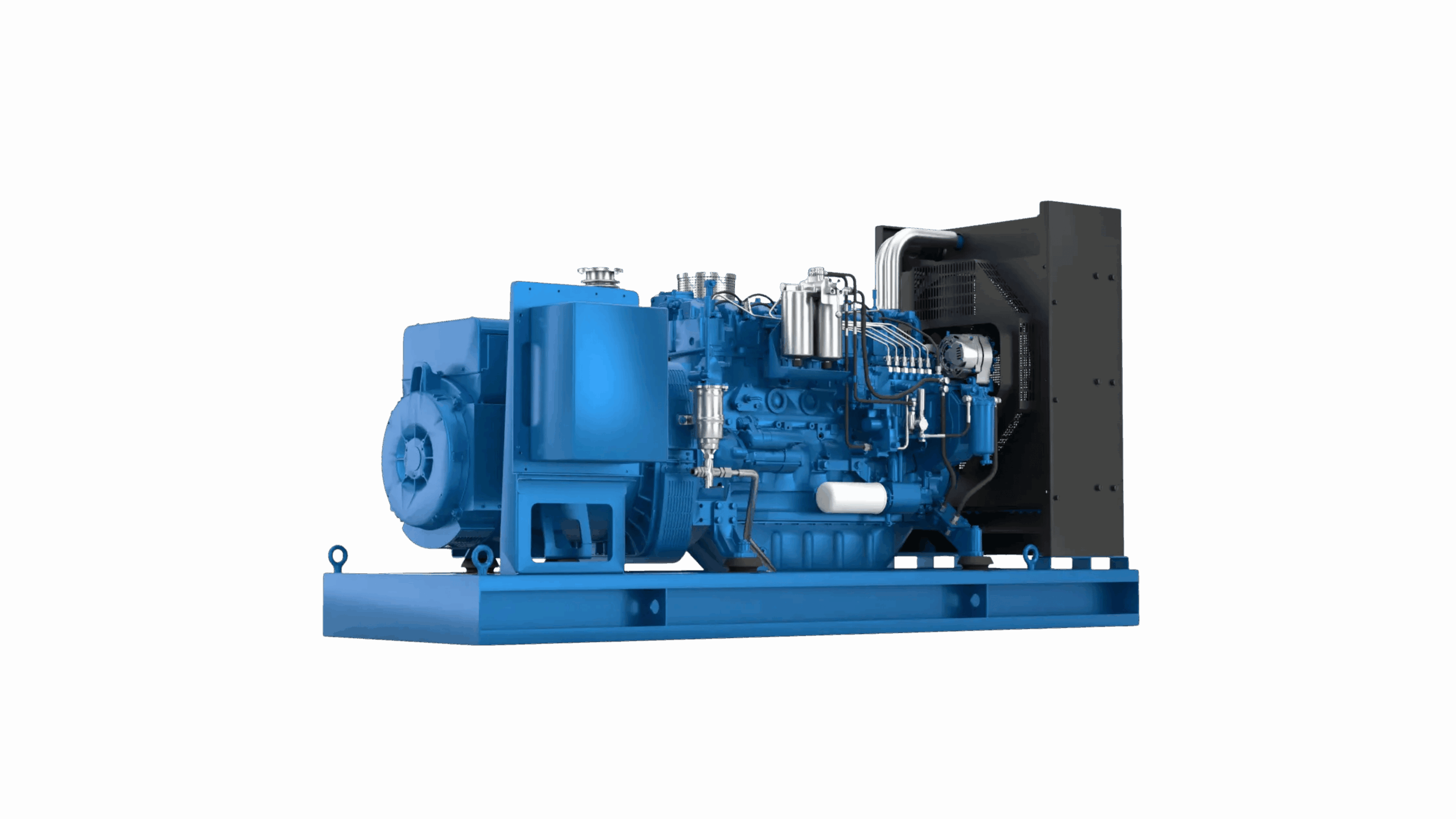

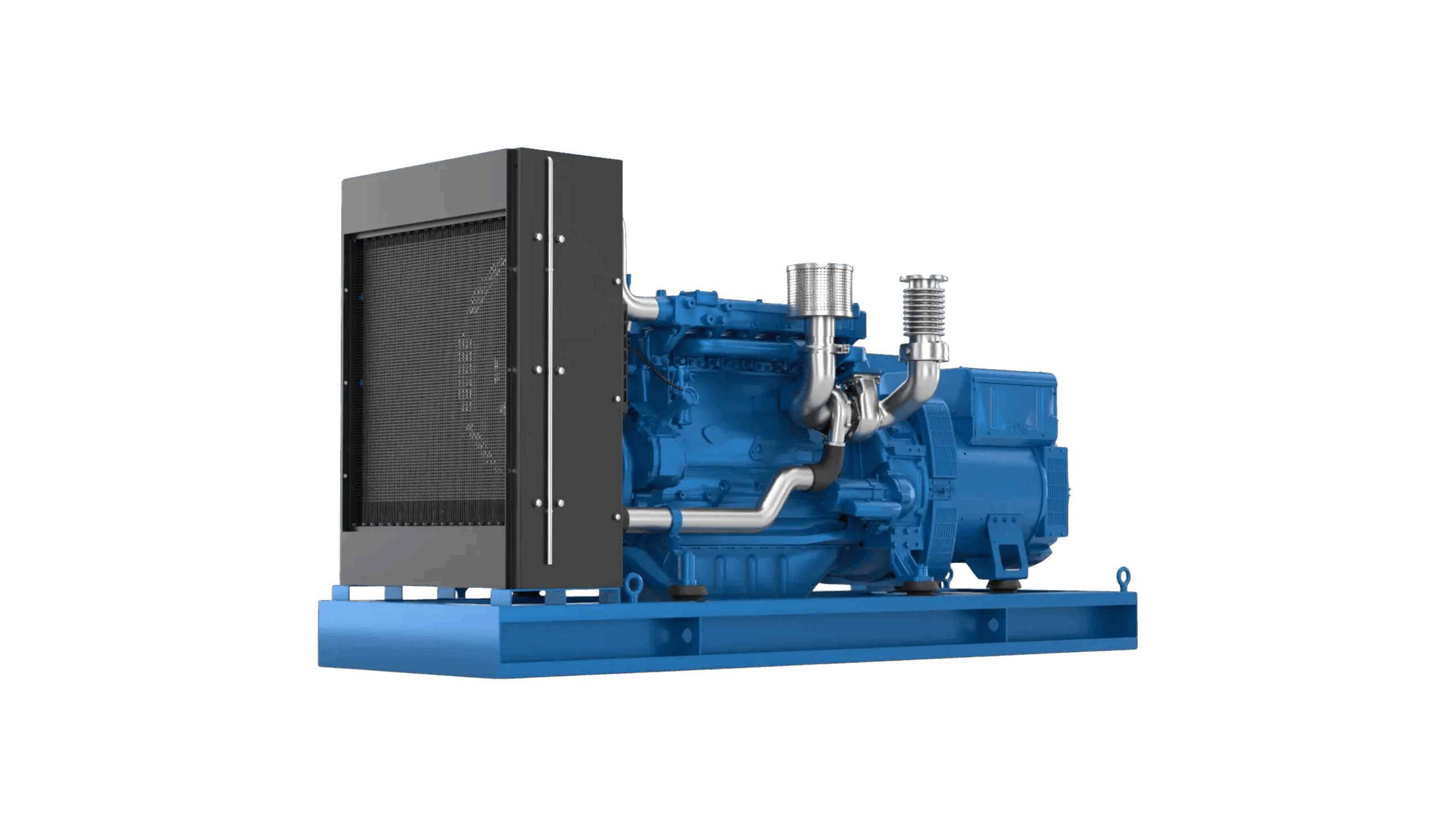

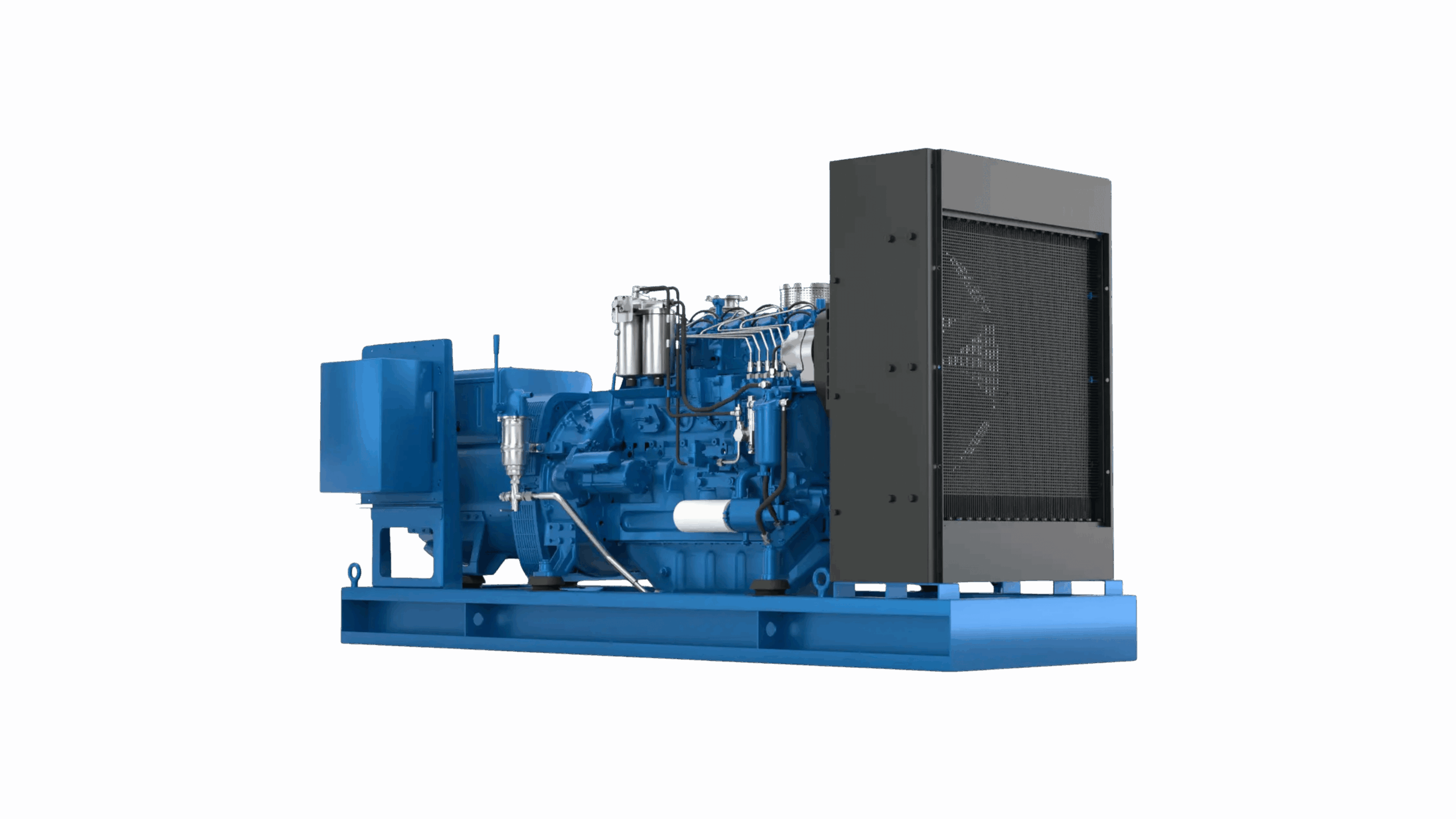

6W105ES
| Model | Injection | Speed Control | Cylinder Configuration | Bore/Stroke (mm) | Displacement (|) |
|---|---|---|---|---|---|
| 6W105ES | Mechanical | Mechanical governor | L6 | 105 x 130 | 6.7 |
Rating Table
| Rating | Frequency | RPM | kWm | kWe | kVA | IMO | EPA |
|---|---|---|---|---|---|---|---|
| ESP | 50 Hz | 1500 | 132 | 165 | - | ||
| PRP | 50 Hz | 1500 | 120 | 150 | II | ||
| ESP | 60 Hz | 1800 | 136 | 170 | - | ||
| PRP | 60 Hz | 1800 | 136 | 170 | II |
